How to enable Image for an entity in Microsoft Dynamics CRM

No comments

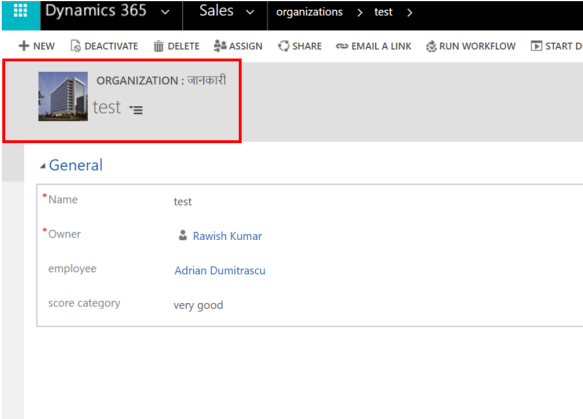

In this blog i am going to discuss about “Image” type attribute/field in CRM and how this can be used to enable image for an entity on the form like below:

8



Lets see how we can achieve this:

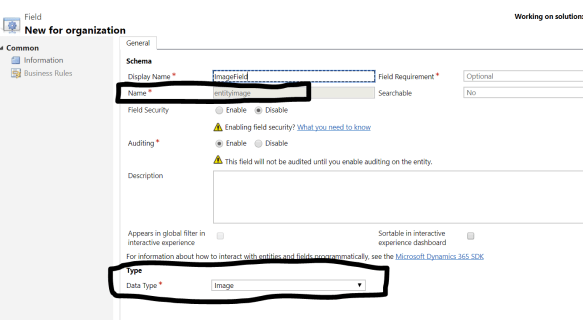

  1. Navigate to Customization>Customize the system>Entities & navigate to the entity for which you want to enable image> go to fields > create a new field as below:2
    Give it a name and select Datatype as image – as soon as you select datatype , you will notice that Schema of the field is set to “entityimage”. Save & close

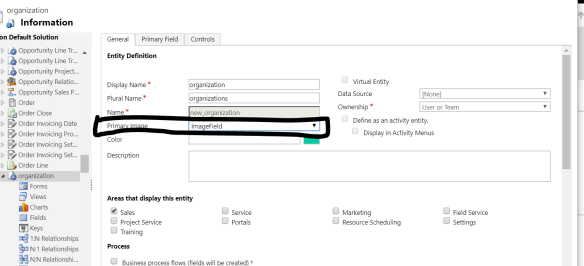

  2. Now 2nd step is to navigate to entity definition as below:3In the property ” Primary Image” – you will see the name has come , if not select it from the dropdown.

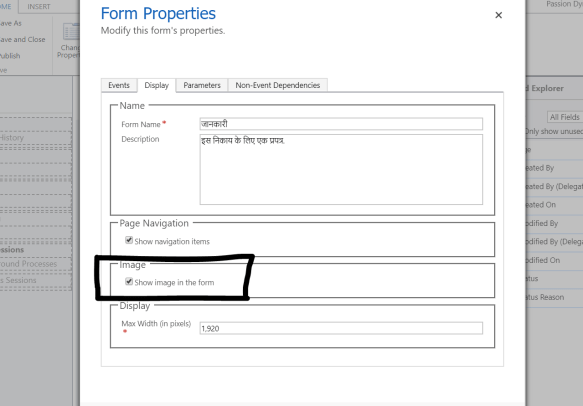

  3. Final Step is to make form changes, navigate to the form and open form editor and click on “form properties” , select the below option:4

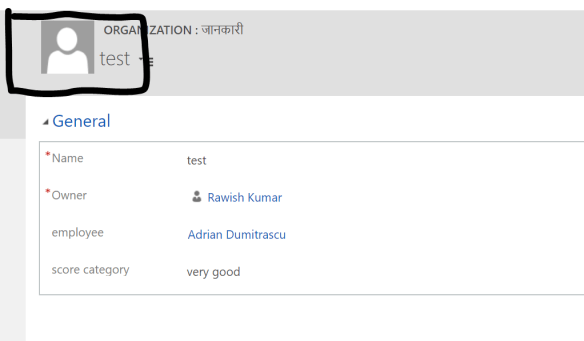

  4. Lastly save and close the form and publish all customizations. Navigate to the entity record , you will notice an image icon is now appearing on the form.
    5

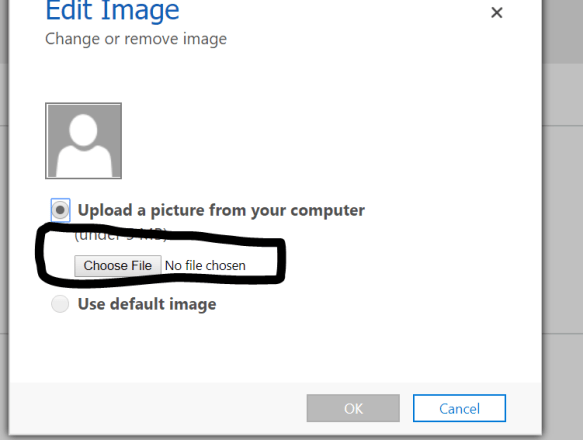

  5. click on the image and browse the image you want to set:6

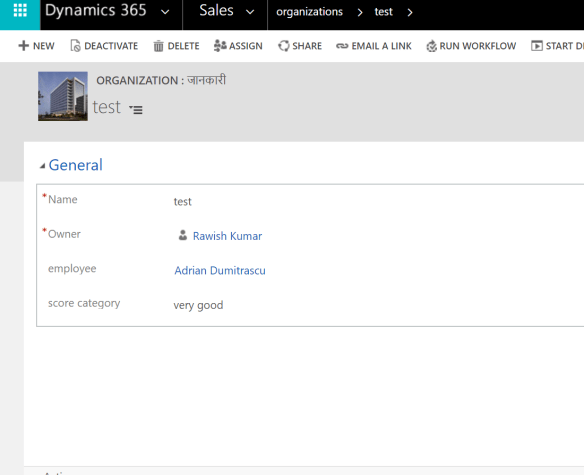

  6. After Selecting the Image click okay and you will see image is appearing now:7



I hope this helps!



cheers!
